Creating a 2D floor plan in SketchUp may appear simple, but true mastery requires understanding essential tools, techniques, and creative strategies that turn sketches into detailed designs. For interior designers, architects, or homeowners planning renovations, the ability to build accurate and visually compelling floor plans is an invaluable skill. This guide walks you through every step—from organizing your workspace to avoiding common pitfalls—giving you the knowledge and confidence to create professional-quality 2D floor plans efficiently and creatively.

Step 1: Start with a “2D Template”

$\"Start$

When you first open SketchUp, you’ll see several template options. To create a 2D floor plan, it’s important to choose a 2D template — usually labeled something like “Simple Template – Feet and Inches” or “Architectural Design – Millimeters.”

This template sets up your workspace in Top View and Parallel Projection, which helps you focus on drawing from above, just like a floor plan.

Pro Tips:

Press Camera > Standard Views > Top and Camera > Parallel Projection to lock your view.
Set your units under Window > Model Info > Units to ensure measurements are consistent (e.g., meters, feet, or inches).
Save your workspace as a custom 2D template so you can quickly start future projects with the same setup.

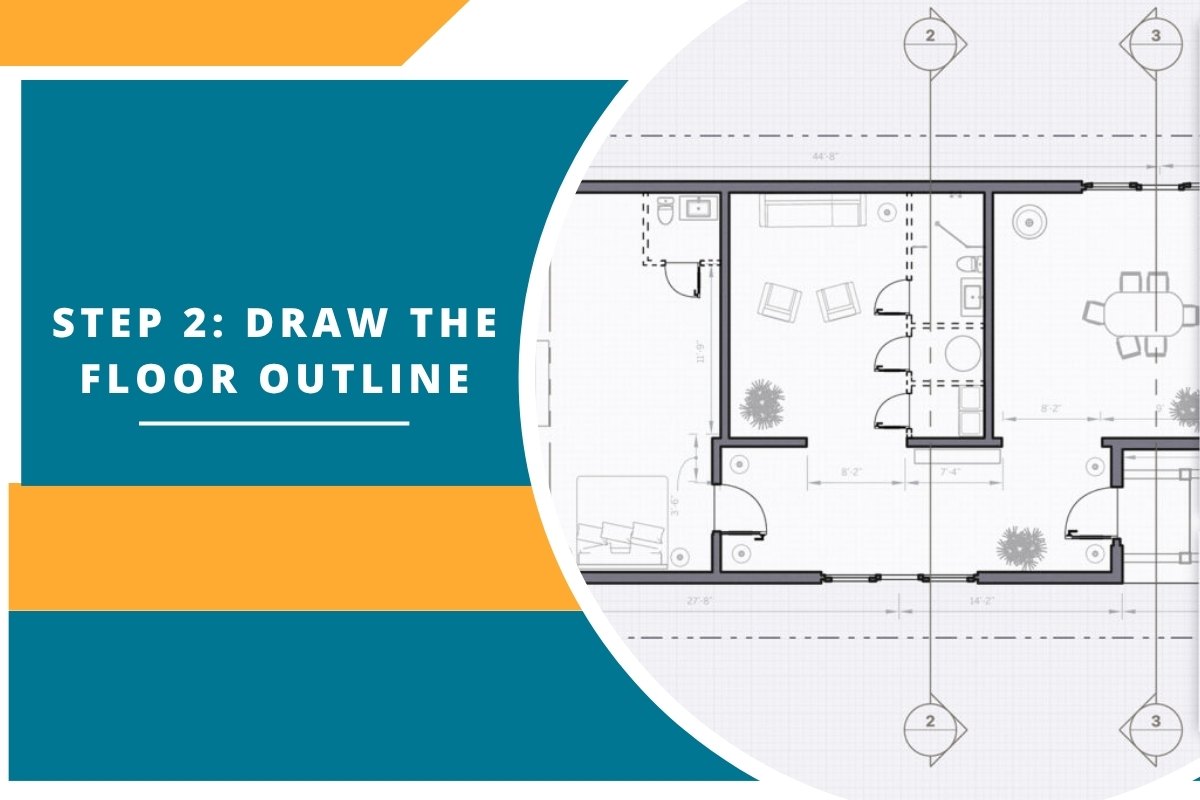

Step 2: Draw the Floor Outline

$\"Draw$

Once your workspace is ready, it’s time to start sketching your floor layout.

Use the Rectangle Tool (R) to outline the main boundary of your floor. You can type in precise dimensions (e.g., 30’,20’) as you draw. Then, use the Line Tool (L) to adjust any irregular shapes or extensions.

Pro Tips:

Use Guide Lines (Tape Measure Tool) to create reference points and ensure walls align correctly.
You can group your floor base so that it remains separate from the walls and other elements later.
Double-check dimensions using the Dimension Tool (D) to confirm accuracy.

This step essentially sets the foundation of your floor plan — a precise outline that will dictate the placement of all other architectural elements.

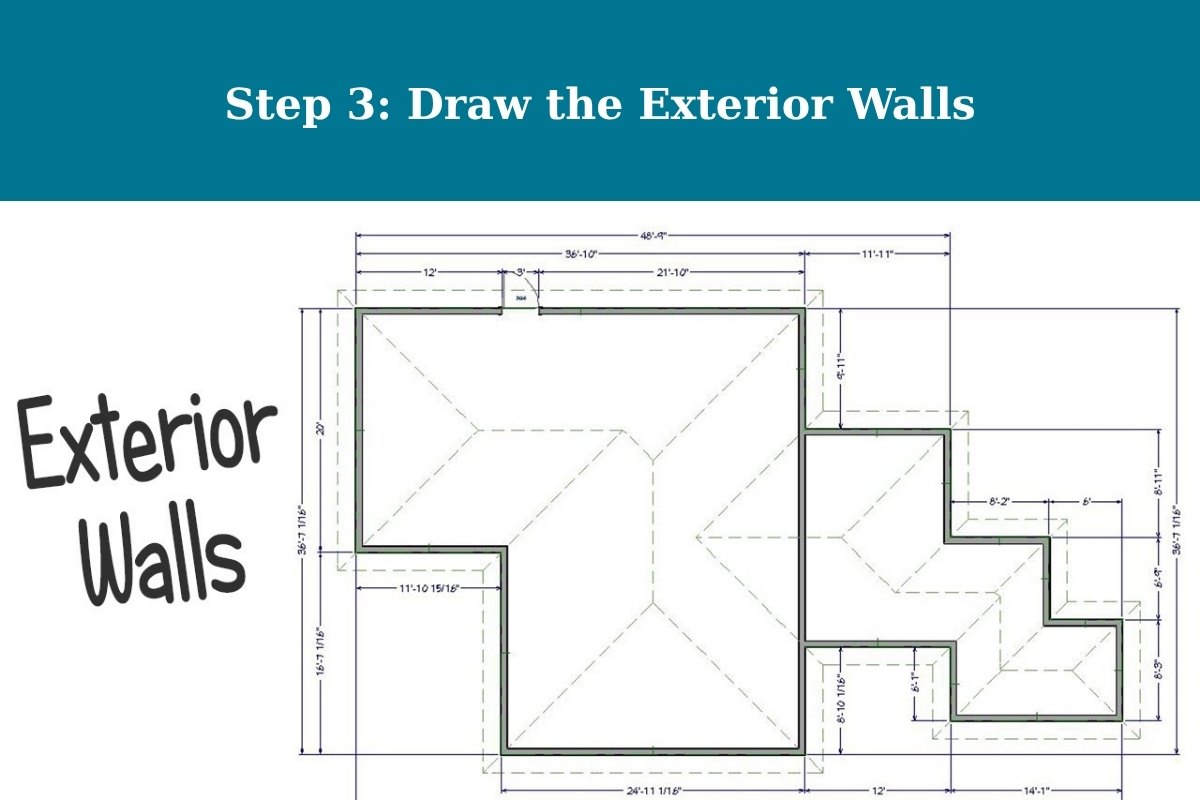

Step 3: Draw the Exterior Walls

$\"Draw$

Now that you have your floor boundary, let’s add the exterior walls. These are the perimeter structures that define your building’s footprint.

To create them:

Select the Offset Tool (F).
Click inside your floor outline and drag inward to create wall thickness (typically 150mm to 200mm or 6–8 inches).
Erase unnecessary lines using the Eraser Tool (E) or the Select + Delete combination.

Pro Tips:

Keep your wall thickness consistent throughout to ensure professional accuracy.
Use Groups or Layers (Tags) to keep walls separate from furniture and other items.
If you plan to convert this to a 3D model later, ensure all corners are perfectly connected (no gaps between lines).

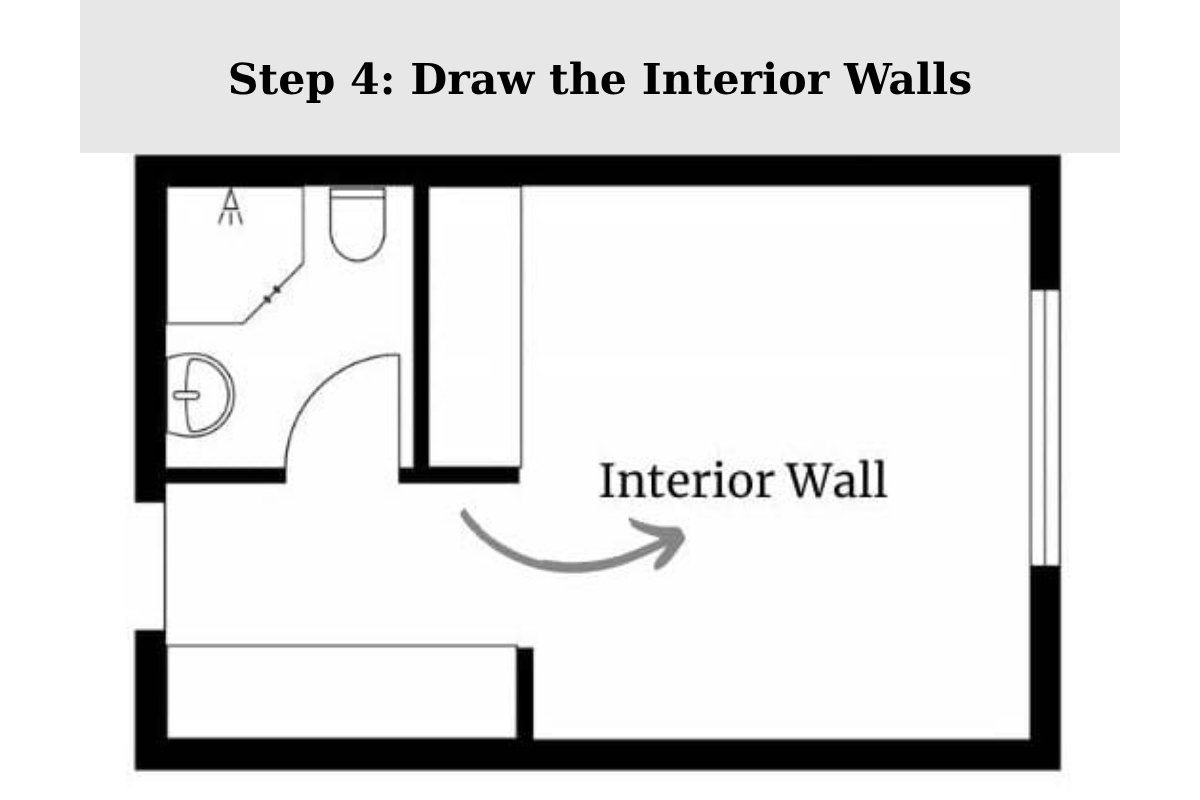

Step 4: Draw the Interior Walls

$\"Draw$

Once the exterior walls are complete, it’s time to design the internal divisions that form the rooms.

Use the Line Tool (L) again to draw interior walls based on your layout design. You can refer to real-world measurements or architectural references. If you want uniform thickness, use the Offset Tool (F) again and erase unnecessary segments.

Pro Tips:

Use guidelines to maintain symmetry and alignment between rooms.
Label rooms using the Text Tool (T) — for instance, “Living Room,” “Kitchen,” or “Bedroom 1.”
To make changes easier later, group each room separately.

This step defines the core of your floor plan. Every door, window, and furniture element will align with these internal partitions.

Step 5: Add Windows and Doors

$\"Add$

With walls in place, you can now add openings for doors and windows.

Use the Rectangle Tool (R) to mark openings on the walls.
Use the Push/Pull Tool (P) to cut or visually indicate those spaces.
Optionally, download door and window components from the SketchUp 3D Warehouse to represent them visually on your plan.

Pro Tips:

Maintain realistic proportions — for instance, door width (about 3 feet) and window height (4–5 feet from the floor).
Keep everything aligned on the same plane since this is a 2D plan (no need for elevation).
Consider using dashed lines to represent door swings or window openings for clarity.

Doors and windows give your floor plan a functional and aesthetic balance, turning basic walls into realistic architectural elements.

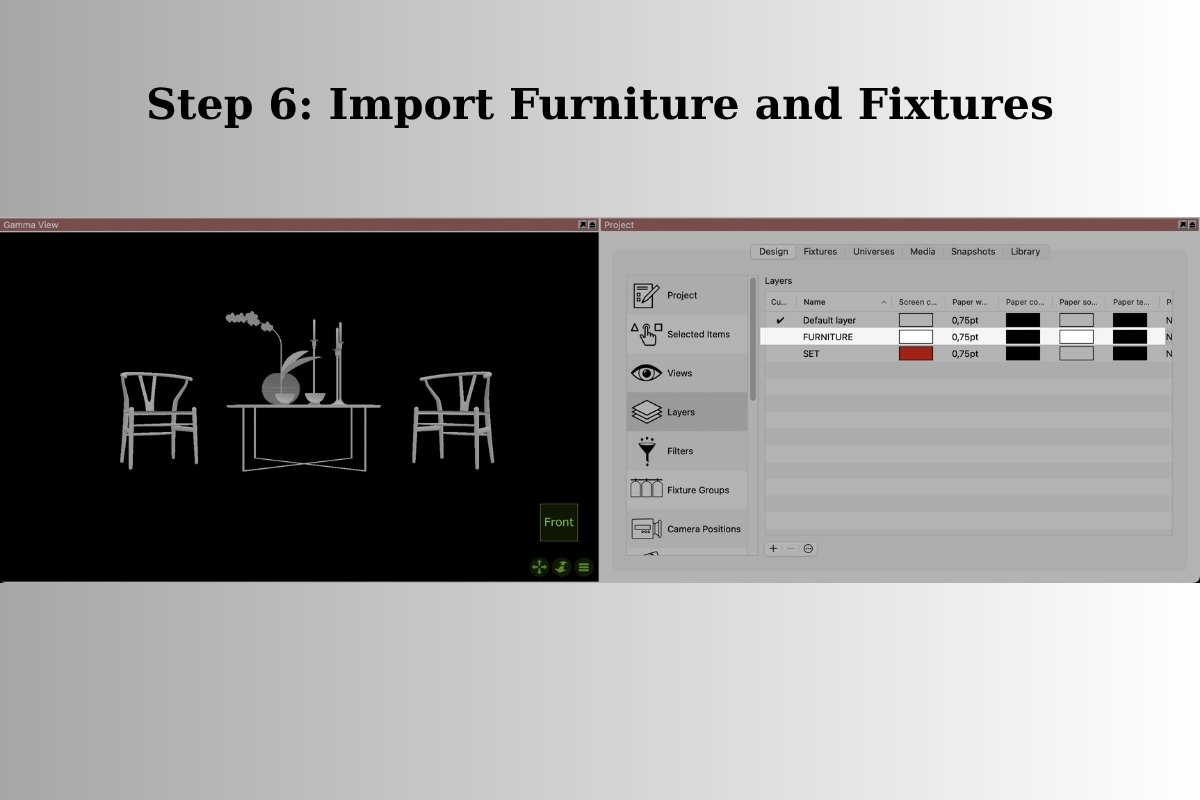

Step 6: Import Furniture and Fixtures

$\"Import$

No floor plan feels complete without interior elements. SketchUp makes it easy to import furniture and fixtures to bring your layout to life.

You can find countless free components on the 3D Warehouse, including:

Sofas, beds, and dining tables
Kitchen cabinets and bathroom fixtures
Office desks and decor items

Even in a 2D plan, these symbols help convey the intended layout and scale of each room.

Pro Tips:

For 2D symbols, switch to Top View and use Flat Components that don’t cast shadows.
Keep furniture on a separate Layer (Tag) so you can hide or show them easily when presenting.
Use consistent line weights to differentiate between fixed elements (walls) and movable furniture.

Adding these details not only improves the visual appeal of your plan but also helps clients visualize the functionality of each space.

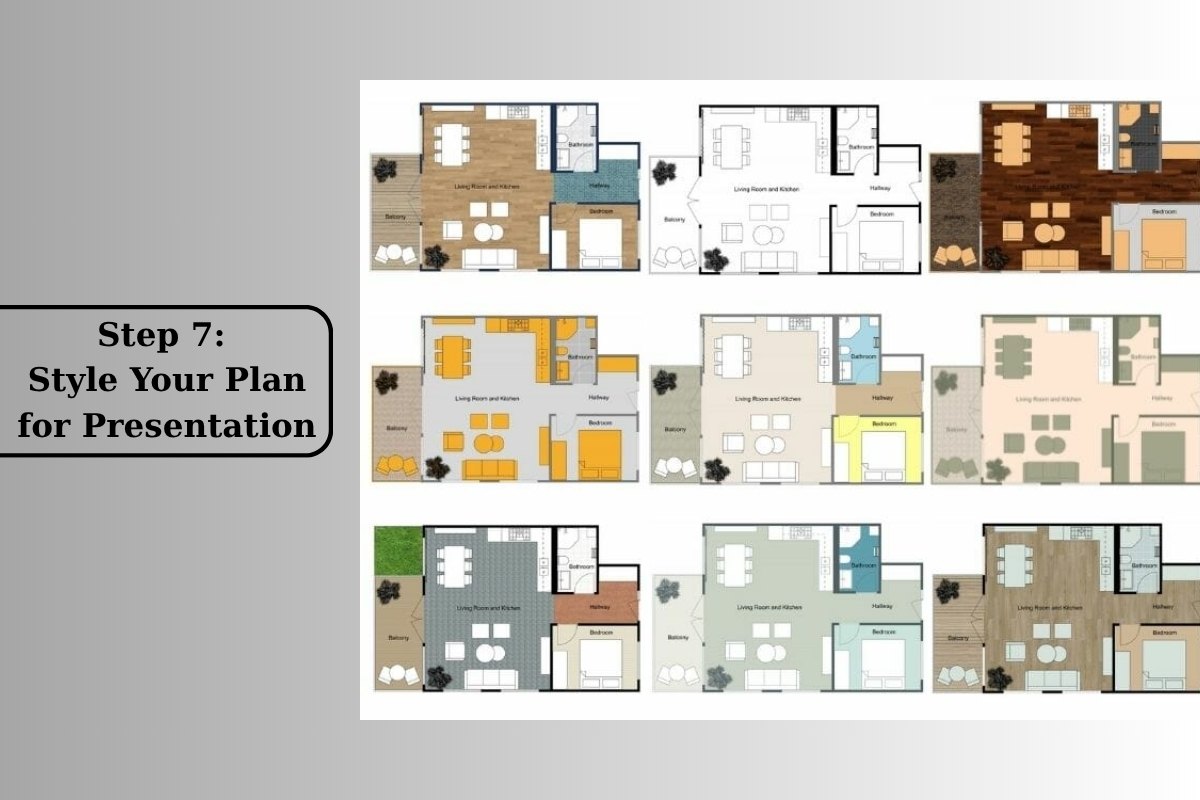

Step 7: Style Your Plan for Presentation

$\"Style$

Now that your floor plan is complete, it’s time to make it presentation-ready.

SketchUp offers several ways to stylize your plan:

Use Styles: Go to Window > Styles and choose from clean or artistic line styles.
Add Section Fills: Use hatching patterns or colored fills to differentiate room types.
Adjust Line Weights: Thicker lines for walls, thinner lines for furniture — this enhances clarity.
Add Text and Dimensions: Label each room and mark key measurements for a professional touch.
Export Your Plan: Go to File > Export > 2D Graphic to save your floor plan as a high-resolution image (JPG, PNG, or PDF).

Pro Tips:

For professional presentations, import your floor plan into SketchUp Layout, where you can add title blocks, scales, and annotations.
Consider exporting in black and white line style for a clean architectural look.
For client presentations, you can even overlay color fills or textures to make spaces more engaging.

Why Use SketchUp for 2D Floor Plans?

Before we jump into the steps, it’s worth understanding why SketchUp is an excellent choice for drafting 2D plans.

User-Friendly Interface: SketchUp’s tools are intuitive, even for beginners who don’t have experience with CAD software.
Precision Drawing Tools: You can work with exact measurements, making it ideal for architectural or real estate drawings.
Easy Transition to 3D: Once your 2D plan is complete, you can instantly pull it into a 3D model — no need to switch software.
Professional Presentation: You can export your plan to Layout or use styles and line weights to make it visually appealing for clients.

Conclusion

Mastering how to create a 2D floor plan in SketchUp blends technical skill with creative vision. Starting with an organized workspace, learning core drawing tools, and using extensions or shortcuts can streamline your workflow. Applying layers, precise measurements, and avoiding common mistakes ensures accuracy and quality. A well-designed 2D plan not only guides project execution but also sparks design ideas. With practice and smart use of SketchUp’s features, you can achieve professional, efficient, and innovative floor planning.
