Transforming a flat 2D floor plan into a detailed 3D model in AutoCAD opens up new possibilities for visualization and presentation. Whether you’re an architect, interior designer, or student learning 3D modeling, this process lets you explore spatial design, materials, and lighting with stunning realism.

In this guide, we’ll walk you through how to turn a 2D floor plan into a 3D model in AutoCAD, step by step — from preparing your drawing to rendering a professional final output.

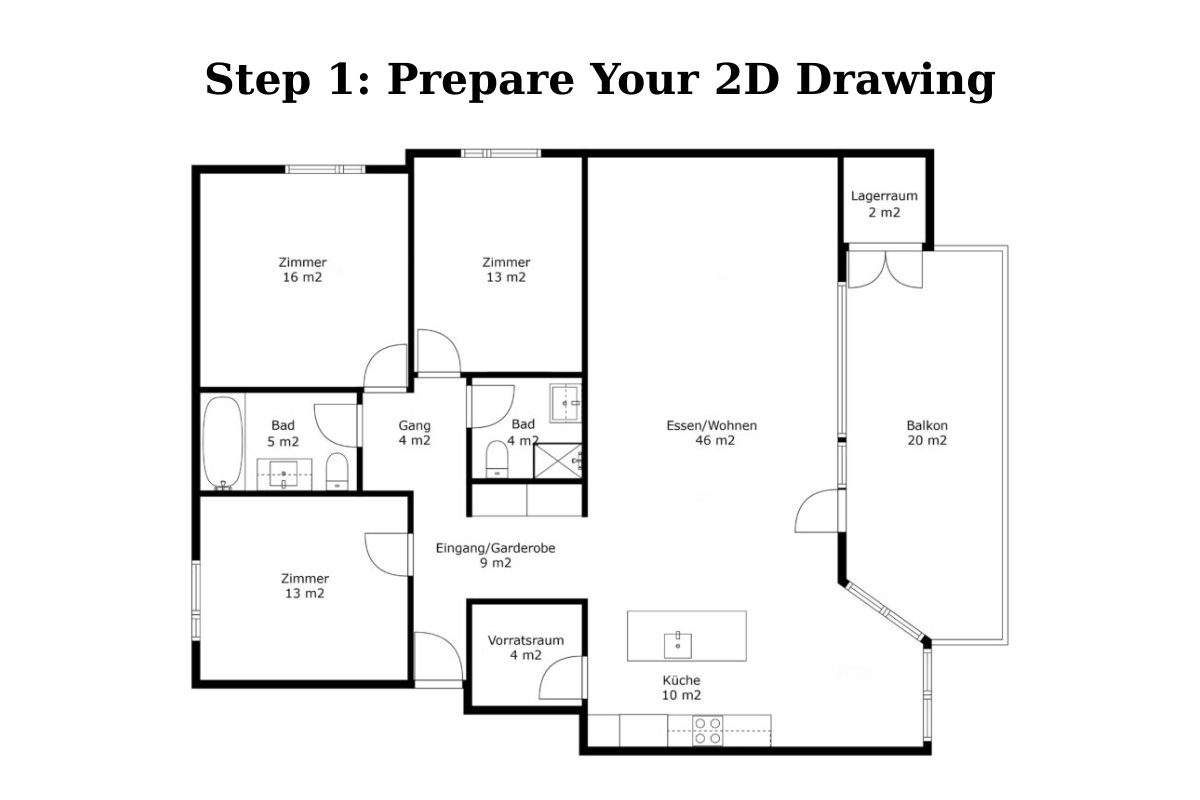

Step 1: Prepare Your 2D Drawing

$\"Prepare$

Before moving into 3D, you must start with a clean and accurate 2D floor plan.

Open your 2D plan in AutoCAD and ensure all elements are correctly scaled and aligned.
Remove duplicate lines, overlapping geometry, or open shapes — these will cause issues later.
For walls, create closed boundaries. Use the BOUNDARY command and select an internal point within each wall area to automatically generate closed polylines.

Pro Tip: Keep your 2D layers organized — separate walls, doors, windows, and furniture onto different layers for better control in 3D.

Step 2: Switch to the 3D Workspace

$\"Switch$

AutoCAD has multiple workspaces, and switching to a 3D environment gives you access to specialized tools.

Click the “Workspace Switching” icon on the status bar.
Choose “3D Modeling” from the list.
You’ll now see the 3D tools and visual styles in your workspace ribbon.

This step prepares AutoCAD to handle extrusion, solid modeling, and rendering commands smoothly.

Step 3: Extrude the Walls

$\"Extrude$

Now that your walls are properly defined, it’s time to give them height and turn them into 3D solids.

Select the closed boundaries you created earlier.
Type EXTRUDE in the command line and press Enter.
Enter the height of your walls (e.g., 3000 mm or 10 ft) and press Enter again.

Your flat walls are now vertical 3D solids. This is the foundation of your 3D model.

Pro Tip: Switch to a shaded view (type SHADEMODE) to easily visualize depth and elevation changes.

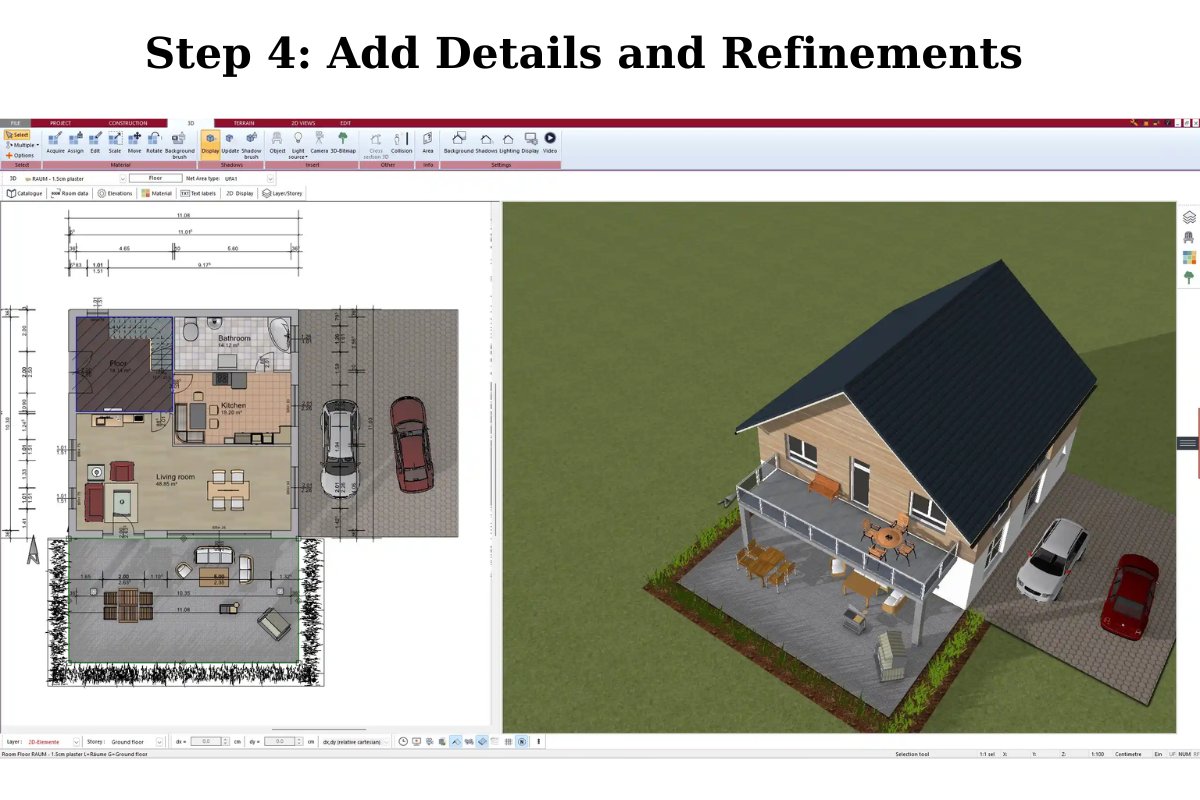

Step 4: Add Details and Refinements

$\"Add$

Now it’s time to bring your model to life by adding architectural details.

Doors and Windows

Create openings by subtracting shapes using the SUBTRACT command.
Alternatively, you can import or create 3D blocks for doors and windows and place them within the wall openings.

Circular and Curved Elements

Use the REVOLVE command for round features like columns or decorative elements.
Combine with UNION or SUBTRACT to integrate them seamlessly with your walls.

Furniture and Fixtures

Use the BLOCK command to insert pre-modeled furniture or build custom pieces.
You can import 3D furniture from external libraries for more realistic presentations.

Step 5: Apply Materials and Lighting

$\"Apply$

To make your 3D floor plan visually stunning, materials and lighting are essential.

Applying Materials

Open the Materials Browser and assign textures like brick, glass, metal, or wood to each surface.
Adjust reflection, transparency, and color settings to achieve realism.

Adding Lighting

Insert ambient, point, or spotlights using AutoCAD’s lighting tools.
Experiment with light direction, shadows, and intensity to simulate natural or artificial illumination.

Pro Tip: Use realistic materials with correct scale and lighting balance for a lifelike scene when rendering.

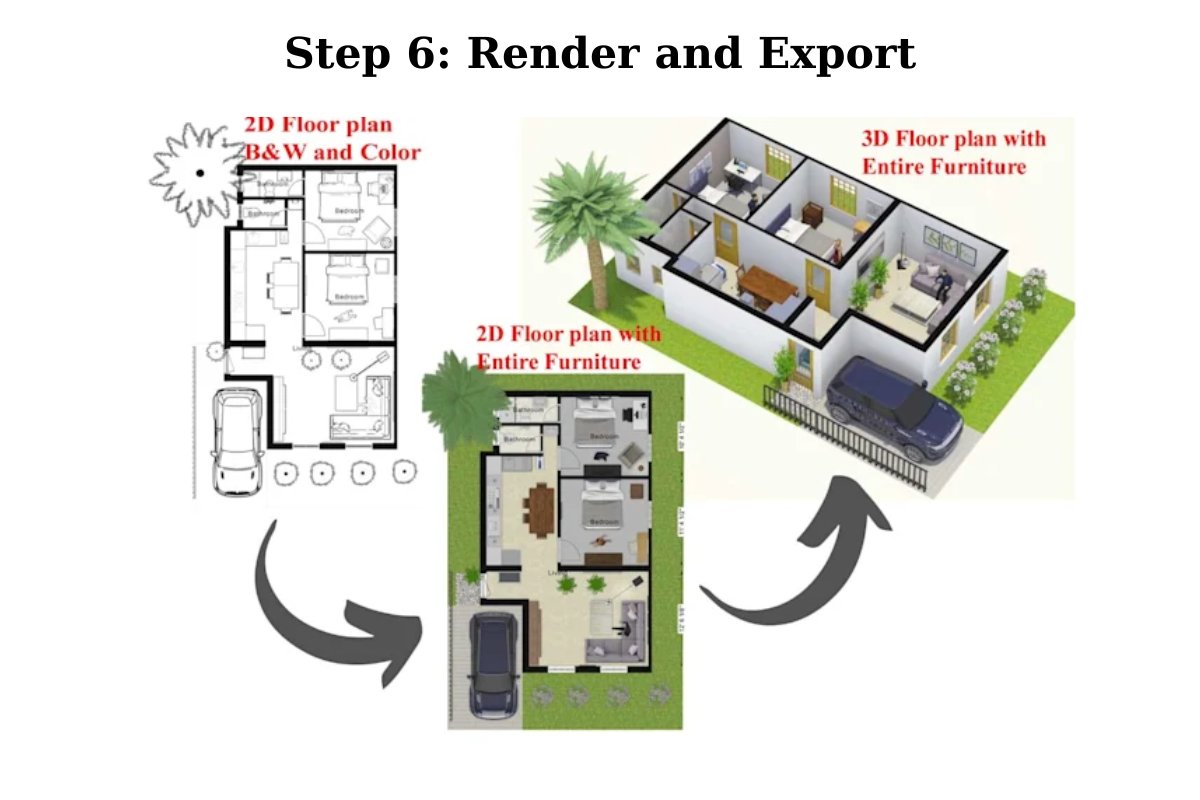

Step 6: Render and Export

$\"Render$

Once your model looks complete, it’s time to produce a polished presentation.

Type RENDER and press Enter to generate a realistic image of your 3D model.
Adjust the render settings for resolution, lighting quality, and background color.
Use the ORBIT command to explore your model from different angles and ensure accuracy.
When satisfied, export your render as an image or 3D file format for client presentations or further editing.

Pro Tip: Experiment with AutoCAD’s visual styles like “Realistic,” “Conceptual,” or “Shaded” to showcase your design from various perspectives.

Conclusion

Turning a 2D floor plan into a 3D model in AutoCAD bridges the gap between imagination and visualization. By following these steps — from preparing your drawing to rendering and post-editing — you’ll create designs that are both technically precise and visually engaging.

Whether you’re building architectural concepts or interior layouts, mastering this process helps you communicate your ideas more clearly and impress clients with realistic presentations.
